RL100/RL200 logger based on LAN

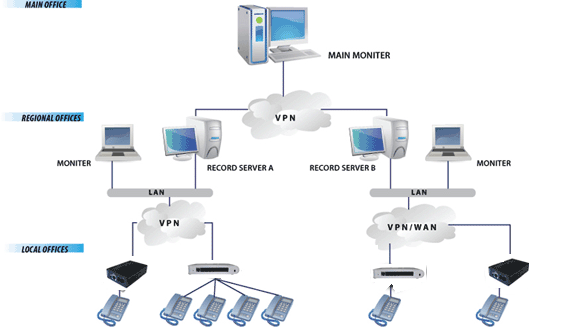

The RL100/RL200 provides two channels per unit . With a powerful host computer and a capable local area network, the system can be easily expanded by simply adding more loggers.
A host computer is required as these loggers do not contain any internal memory for data storage. Instead, data is transferred to the host computer via the network in real time during recording. Real time monitoring is allowed, one channel at a time. User operations (search, play...) and system management are always performed on the host computer with the supplied application program.
The system saves data in Windows WAV format and offers different voice compression options for the user to choose his/her own balance between voice quality and storage requirement. With a big hard drive on the host computer, several months¡¯ worth of data can be easily stored.
Offering superb sound quality and rock solid performance, the RL100/RL200 cal logger system is an ideal solution for various small to medium applications.
Features or Functions
Easy to learn, easy to install and easy to use
Easy to use with many powerful features built in
Use Ethernet interface device, without installing driver
Adopt access database, without installation
With user-friendly operator interface
Minimum PC requirements
Windows XP,Windows 2003 Server,Windows 7(32 bit)
1.5GHZ CPU with 512MB RAM
A dedicated hard drive partition
170 channel/hours of recordings use 1Gig of storage
An available Ethernet card
Show the status of devices and channels real-time
Listen to live calls real-time with one click
Start and stop recording via one of 4 triggering actions
Record all or particular lines at the channels
Record all or particular time periods
Calls filter by some certain caller ID or dialed numbers
Manually back up to other disk driver
Choice of 3 compression rates from 6MB/hr to 29MB/hr
Insert date, time and caller ID or dialed numbers to recording file name
Powerful search filters
Search and sort recordings by 10 different criteria
Example criteria: channel, agent, caller ID, dialed numbers, note, etc
Calendars make searching a date range easy
Listen to recordings with one double click
Show elapse time or happen time during playing
Allows to adjust volume, speed or playing progress
