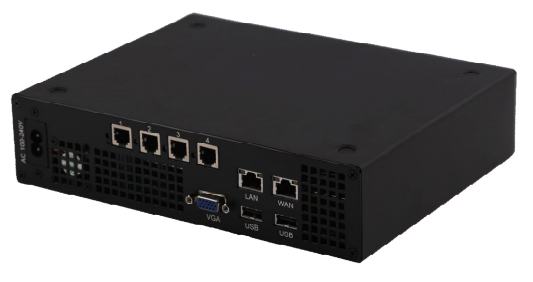

ASTERISK PBX KIT


ASTERISK IPPBX kit is an new product. It works with embedded Mini-itx ATOM® motherboard and designed for Small
& Medium Businesses. System developers can run most of the production version PBX software including asterisk
in this kit. It can also simplify the installation procedure and thus, no more complicated migration work needed.
IPPBX kit comes with Intel® Atom® D2550 processors up to Daul Core 1.86 GHz. The system memory can
be equipped with 240-pin DDR3 1066/1333/1600 SDRAM socket (up to 4 GB). There are flexible combinations of
data storage such as mSATA connector that can meet the demands of any operating systems and applications..






Technical Specifications:

CPU: Intel Atom D2550 Daul Core 1.86GHz

DRAM: Slot onboard, support up to 4GB DDR3 SDRAM
1 mSATA slot support 8G,16G,32G,64G,128G,256G mSATA SSD
Power: 110-240V input
Two front panel LEDs
Push button: For mode setting switch, Accessing a programmable GPI, Active low means
switch is pressed
Expansion:1 PCI slot, fixed and individual interrupt
2 PCI-E 10/100/1000Mbps Ethernet controller ( rlt8111c)
Desktop Mini system
Size: 24cm * 19.5cm * 5.6cm (D*W*H)
Weight: 2.2kg for base confi
Asterisk Telephony Card Options:
BD400A : PCI FXO/FXS card up to 4 ports
BD800A : PCI FXO/FXS card up to 8 ports
BD120D : PCI PRI card with single port

Target Software & Platform:
Asterisk®, Elastix®, trixbox®, PBX in a flash, mISDN, ISDN4BSD, m0n0wall®, pfSense,
FreeBSD®, Askozia®, Voyage-linux, AstBoxLinu
