IPPBX800 is the unified communication gateway targeted at the medium and small enterprise communication application. IPPBX800 supports analog/IP trunks,provides follow me,multi-level voice navigation,telephone conference etc businesses.The system is based on the local Web management interface,supports remote upgrade,maintenance and centralized management. The IPPBX800 uses soft switching core technology to support local access to analog telephone and IP telephone users, and uses IP hosted network to remotely access to IP phone or IAD analog users to realize mixed networking of analog phone and IP phone. Realize the connection of PSTN or private network voice exchange equipment through analog trunk or SIP trunk, effectively improve enterprise deployment and communication efficiency, and help enterprise value increase..

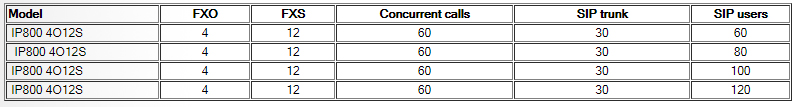

Model FXO FXS Concurrent calls SIP trunk SIP users
 IP800 4O12S 4 12 60 30 60
  IP800 4O12S 4 12 60 30 80
 IP800 4O12S 4 12 60 30 100
 IP800 4O12S 4 12 60 30 120

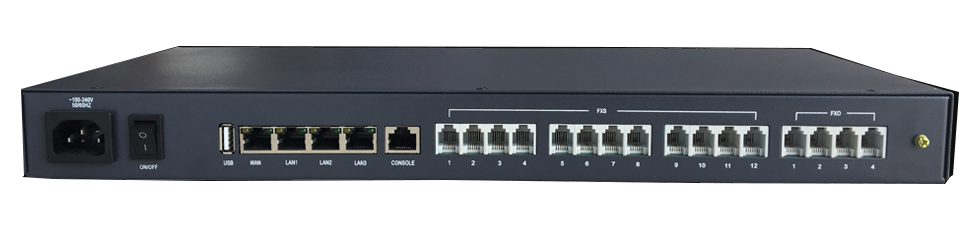

Network interface
1WAN 3LAN RJ45 interface,Rate 10/100/1000mbps
FXS interface 12*RJ11 interface
FXO interface 4*RJ11 interface
Console 1 *RJ45,115200bps
USB 1*USB2.0 Full speed
Power supply 100VAC¡«240VAC£» 50/60Hz
Case 1U metal material

Max power 25W
mm Dimension 430*180*44 mm
Weight ¡Ü2.5KG
Work environment requirements :
Temperature -5¡ãC-55¡ãC Environmental relative humidity ¨Q95% Performance doesn¡¯t decrease within 3000m above sea level The level of the fine article in the air is less than 180mg/m3

Wan IP access  :
Static IP,DHCP Client,PPPoE,Wan subinterface
Voice Codec:
Number Analysis :
Outbound route,CNIS,DNIS,number transfer,Dial rule,Route backup
Basic call affair :
Basic call affair: extension calls each other: The terminal can be analog phone,IP phone,SIP softphone IMS/NGN call: SIP relay communicates with IMS/NGN or IPPBX
VOIP Service :
Jitter Buffer,VAD,Echo cancellation,CNG
DTMF RFC2833, SIP info and inband
Fax T.30 by pass,T.38
video SIP-based point-to-point video call
Network Function :
Static route,NAT,Port mapping,DNS,NTP,DHCP,Firewall
Account management:
 Role permission management
Local management :
Web interface configuration, version upgrade/return, data backup and recovery, license management
Remote management: SNMP V2/V3¡¢TR069
Log management :
Operation log, operation log, user log, security log
Alarm management: Activity alarm, historical alarm query
Uplink interface mode: Support routing mode, bridge mode
IP service:
 DDNS,static Route,NAT,port mapping,uPnp,host ,ALG,DNS,NTP,DHCP service
Flow management :Qos policy,Broadband policy
Hardware Qos: Hardware chip realizes VoIp Qos
Extension type :
Analog: Analog Phone SIP phone :IP phone,video phones,soft phone
Trunk type :Analog trunk,SIP/IMS trunk
Speech codec :G.711U¡¢G.711A¡¢G.723¡¢G.729¡¢iLBC
Video codec :H.263£¬H.264£¨Bypass

DTMF: Support RFC 2833,SIP info and inband
Fax   T.30£¬T.38
Business statistics :Call log,Traffic statistic
Call processing :
Outbound routing Inbound routing number changes ,dialing rules
Call business :
Check own number,Caller ID display,CallerID display restriction,Call forwared unconditional,Call forward on no answer,Blind transfer,Inquiry transfer,call waiting,call hold,call park,3-way call,clap permission,Abbreviated dial,call restriction,group dial restriction,black list,call during restriction,DND,phone logout,co group pickup,designated pickup,Immediate Hotline,Delay hotline,co-vibration service, vibration service,Alarm clock,VIP extension,Recording, SSMN,Voicemail,CRBT,Queue,IVR,Follow me,Billing,Video call etc

WAN port access control:
 WEB access ,Prohibition of PING,SSH Access, SIP Access
Black and white list :
IP address black and white list
Anti-arp attact :IP/MAC binding ,Anti-arp attact
Ddos protection :
Ping of Death¡¢Teardop¡¢TCPFlood¡¢Traceroute¡¢IP Spoofing¡¢ Port Scan ¡¢WINNUKE Att
VoIP Safety: Sip A/C verify SIP registry address verify,Call duration limitation,Call monitor
Local management :Web ,Telnet,SSH
Telemanagemen :SNMP¡¢TR069
System debug: Ping¡¢Traceroute¡¢lfconfig¡¢Route¡¢HttpGet¡¢DNS Query
Log management :Log query,log setting
System protection:
Configure backup and recovery £¬System update,restore ex-work setting£¬Time set
