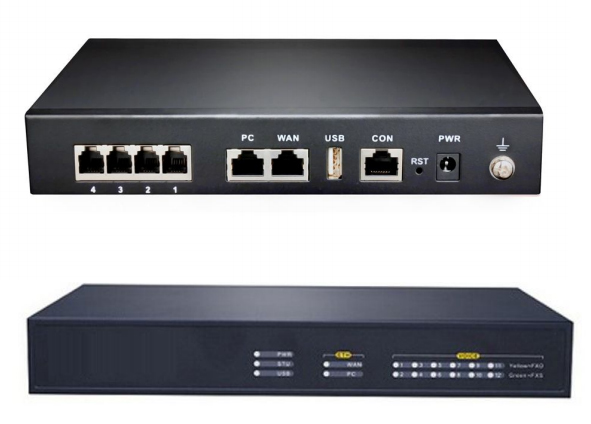

BM 4/12 IP PBX


BM04/12 are All-in-One IP pabx systems.They provide seamless connectivity to PSTN and SIP trunks. Using VoIP,the BM supports inter-office calls over the internet or VPN. With features such as remote extension, call forking to your mobile phone and call-back, BM assures you that no matter where you are,whether in your office, traveling abroad, or working at home, you will never miss any important business call.
Auto attendant can provide 24/7 live answering service to customers, and direct the incoming calls efficiently to the extension or cell phone of the right person through
configurable voice menus in business/non-business hours and holidays.

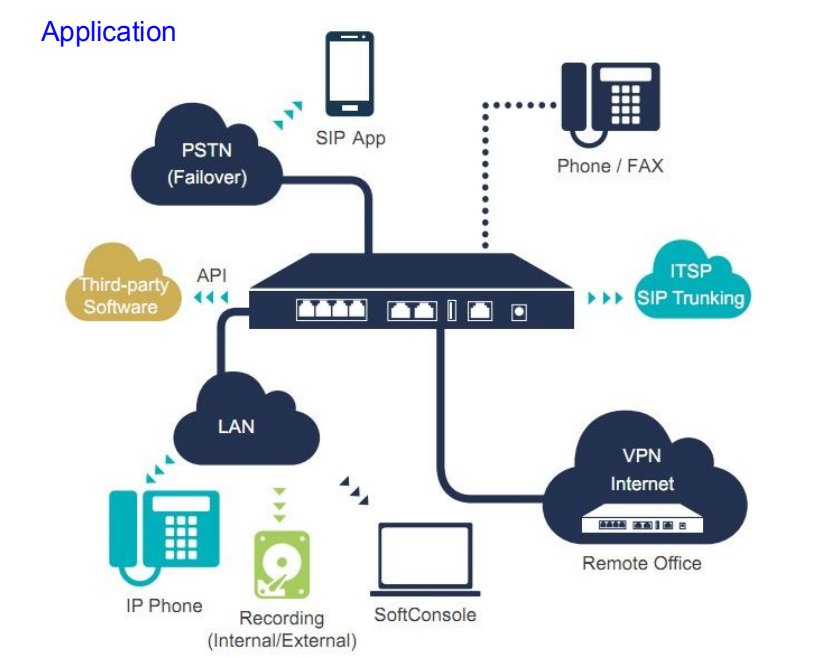

BM has IP remote-calling functions needed to support the remote worker, business travel, and communication with branches through the Internet.
With IP connectivity, international or long-distance calls are turned into local toll-free calls.

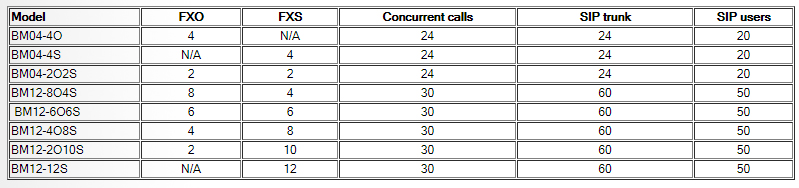

Model FXO FXS Concurrent calls SIP trunk SIP users
BM04-4O 4 N/A 24 24 20
BM04-4S N/A 4 24 24 20
BM04-2O2S 2 2 24 24 20
BM12-8O4S 8 4 30 60 50
 BM12-6O6S 6 6 30 60 50
BM12-4O8S 4 8 30 60 50
BM12-2O10S 2 10 30 60 50
BM12-12S N/A 12 30 60 50




Protocols
Call control

SIP/UDP and SIP/TCP(RFC3261),
IMS(3GPP), MGCP(RFC3435)
Network
Telnet, SSH, HTTP, HTTPS, DHCP/PPPoE
client, ,DNS(A/SRV record), STUN

Media Processing
Caller ID
Bellcore Type 1&2, ETSI, BT, NTT,
and DTMF-based CID
Codec
G.711(a/μ), G.729a
Fax over IP
T.38, G.711 pass-through
T.38 compliant Group 3 Fax Relay
Maximum fax rate of 33,600 bps (T.38)
DTMF
RFC2833, SIP-INFO, Transparency
Disconnect modes
Polarity reversal, Busy tone detection,
Loop current
Voice-quality enhancement
Echo cancellation(G.168-2004, 64 ms taillength),
Adaptive jitter buffer


Voice
Smart auto attendant/ Receptionist
Business/non-business hours/holiday, Music on
hold, Attendant group, Multilingual/multi-level
IVR, Auto attendant profiles, VIP service
Dialing
Speed dial, Outgoing route selection, Least cost
routing, Automatic route selection
Call settings
Call transfer, Call forward, Do not disturb, Barge,
Silent monitoring, Simplified DISA etc
DISA
Authorization with calling party number,
Authorization triggered by feature access code
Call recording
Call recording(total, on demand), Recording
priority/retention priority upon insufficient storage
Voicemail
MWI(polarity reversed/FSK/high voltage)
Analog trunk
Caller ID, Polarity reversal detection
SIP trunk
IMS, Multiple SIP servers, Skype Connect
Phone status Indication
Status subscription(BLF)

Security
User-defined ports
SIP port, RTP port, HTTP/HTTPS port to access
the Web GUI
Access list
IP addresses allowed to access HTTP/HTTPS/
Telnet/SSH service

Encryption
Encrypted password/PIN
IP phone protection
Prohibition on outgoing dialing by IP extensions
on public network, User-Agent authentication,
Registration password cracking protection
Web GUI login protection
Prohibition on login from public IP address,
Login password cracking protection
Security level
Three levels of security settings
Intrusion prevention
Ping blocking
Administration and Maintenance
Device management
TR069, SNMP
Application interface
API (XML/HTTP)
Auto provisioning
Download configuration file via TFTP/FTP/
HTTP/HTTPS, Obtaining ACS address via
DHCP option 66 or redirection
Phone management
Plug-and-play for IP phones, Configuration-free
installation of softphone
Local log storage
Internal USB flash drive
Data capture
Port capture, Packet capture
Configuration
Bulk import/export. Resetting to the factory
default
Status monitoring/ alarming
Status/performance monitoring or reporting.
Status/performance alarms

Other
Multi-site voice
Uniform dial plan, Call forward, Call transfer.
Outbound trunk sharing, Three-way calling,
Attendant on remote site
802.IP QoS/CoS
IP TOS/TSCP
Media stored in internal USB flash drive
Local recording, Voicemail, Customer
information,
User-uploaded IVR file

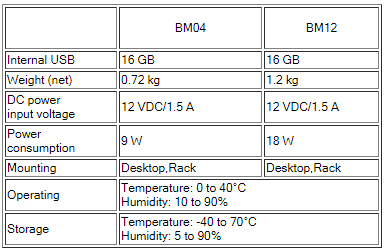

Hardware


BM04

BM12

Internal USB 16 GB 16 GB
Weight (net) 0.72 kg 1.2 kg
DC power
input voltage
12 VDC/1.5 A 12 VDC/1.5 A
Power
consumption
9 W 18 W
Mounting Desktop,Rack Desktop,Rack
Operating Temperature: 0 to 40<C
Humidity: 10 to 90%
Storage Temperature: -40 to 70<C
Humidity: 5 to 90%
