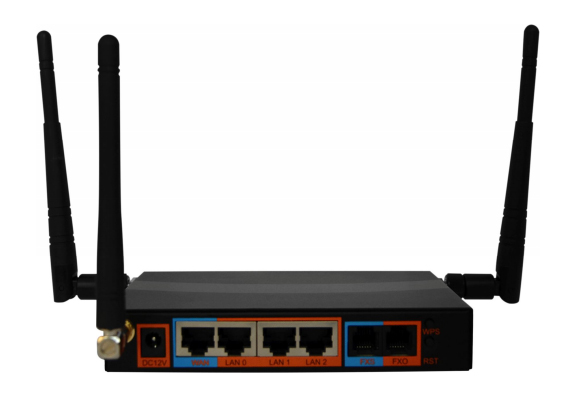

HM100 IP PABX
HM100 combines
the functions of the IP-based PBX telephone systems with the full featured GSM/WLAN
broadband router to deliver an all-in-one communication system for small
business and home
Features:
1) WiFi, GSM Video,voice
2) Full IPPBX features

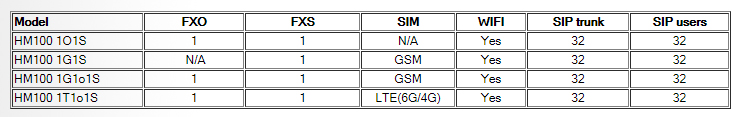

3 ) 1FXO1FXS or 1GSM1FXO1FXS or 1LTE1FXO1FXS
4 ) 32 extensions
5) 8 concurrent calls
6) Mobile extension with WiFi smartphone
7) HD video/audio
8) QoS, VPN,DDNS

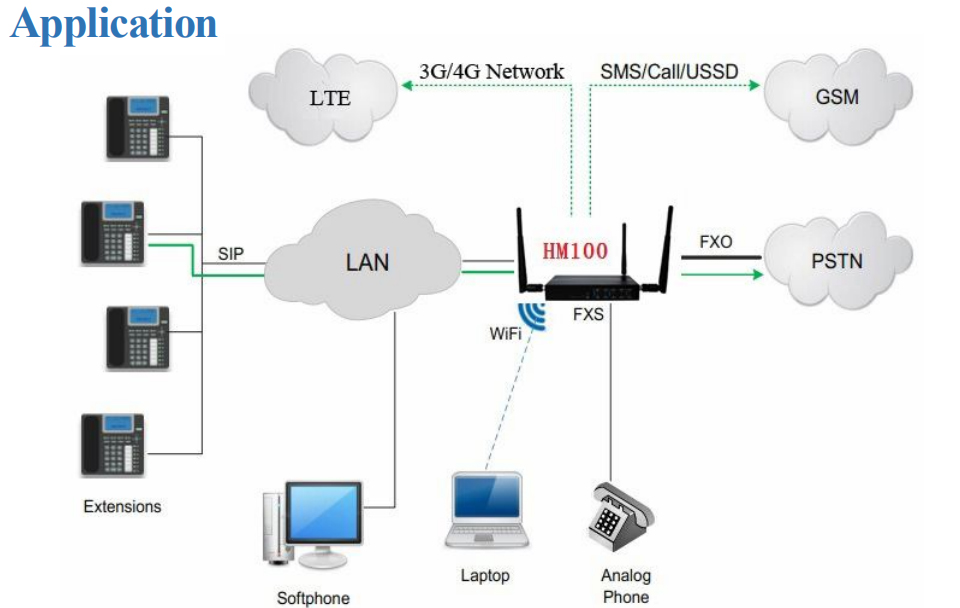

HM100 is a multi-functional device. It integrates
voice service and data service. As a hybrid voip
PBX, it provide 32 sip users connection.it provide
Auto attendant, IVR, call
forward/hold/waiting/transter etc pbx function.it
also provide failover routing.As a sip server, it
supports sip device registering include sip phone,
sip video camera, sip APP, sip video
phone sip ATA, etc. it also supports sip trunk for
calling in/out.As a hybrid voip ATA,it provides
three voice interfaces (including GSM/LTE, FXS and
FXO), offering
seamless connectivity to VoIP Network, PLMN and
PSTN.it also provide SMS sending&receiving. As a
router, it supports WiFi and has high-speed
data-handling capacity, allowing users to enjoy
high-speed internet surfing through WiFi or the LAN
port. Meanwhile, it is perfect for small and micro
enterprises, providing high-speed internet access,
good voice
service and messaging service
Software Features
Ring Group Routing Groups Caller/Called Number Manipulation Routing Base on Time Period Routing Base on Caller/Called Prefixes Routing Base on Source Trunks Dial Rules Failover Routing FXO Impedance Auto Match IVR Customization Auto Attendant Function CDR Maintenance Web GUI Configuration Telnet Management Configuration Restore/Backup Multiple Languages Supported HTTP/TFTP/FTP Firmware Upgrade Auto Provision CDR Report and Export Syslog Ping and Tracert Traffic Statistics: TCP,UDP,RTP Network Capture NTP Voice Capabilities VoIP Protocols: SIP over UDP/TCP/TLS,SDP,RTP/SRTP Codecs: G.711a/¦Ì law,G.723.1, G.729A/B, iLBC,G.726 Silence Suppression Comfort Noise Generator(CNG) Voice Activity Detection(VAD) Echo Cancellation: G.168 with up to 128ms Dynamic Jitter Buffer Adjustable Gain Contro Automatic Gain Control (AGC) Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone FAX: T.38and Pass-through NAT: STUN/UPnP DTMF: RFC2833/Signal/Inbandl |
FXS
Connector: RJ11 Caller ID: Bellcore Type 1&2, ETSI,BT,NTTand DTMF Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone Polarity Reversal Hook Flash FXO Connector: RJ11 Caller ID: FSK, DTMF Polarity Reversal Answer Delay Busy Tone Detection No Current Detection Mobile GSM: 850/900/1800/1900MHz SIM/UIM: 1 SIM/UIM per Channel SIMCard: 1.8V, 3.0V Antenna: 3.0dB, SMAInterface SMS/USSD Bulk SMS SMS Code/Decode: ASCII, Unicode IMEI/PIN Code Management Physical Interfaces FXSPort: 1 FXOPort: 1 SIM Slot: 1 Ethernet Interfaces:1WAN&1LAN10/100 Base-T RJ45 WIFI:2.4GHz 802.11n Environmental Power Supply: 12VDC, 1A Power Consumption: 10W Operating Temperature. 0-- 45 Celsius degree Storage Temperature: -20--~80 Celsius degree Humidity: 10%--90% Non-Condensing Dimensions (W/D/H): 126x75x25mm Unit Weight: 0.7kg |
