HY400P Analogy telephony cards

Product Features

  New generation of analogy telephony card

 Compliance with international telecommunications standards

Parameterized interfaces, meet the different demands of various lines

Design for extended and large-capacity solutions, suitable from a few to hundreds of lines

Specifically designed for open source telephony porjects, such as Asterisk, freeswitch, yatem etc.

Highlights

Large capacity: Each card supports 16 FXO / FXS interfaces. Each machine can support more than 6 cards and provide high-capacity analog telephone interfaces support

Flexible configuration: You can select single-port and dual-port modules, flexible configuration to meet different requirements.

Efficiency:Burst-mode DMA with 128M transfer speed.Optimized FPGA design, reliable and efficient.

International standards: High quality and Carries-grade SLIC and POTS  chips with the world's largest installation volume. Meet the globe standards and no compatibility issues exist.

Convenient and reliable: No additional power supplier is required for FXS modules.

Standard framework: The same hardware architecture has been used in all our BL series telephony cards to ensure the product quality.





Product Models

Our new analogy card series includes the following 4 models:

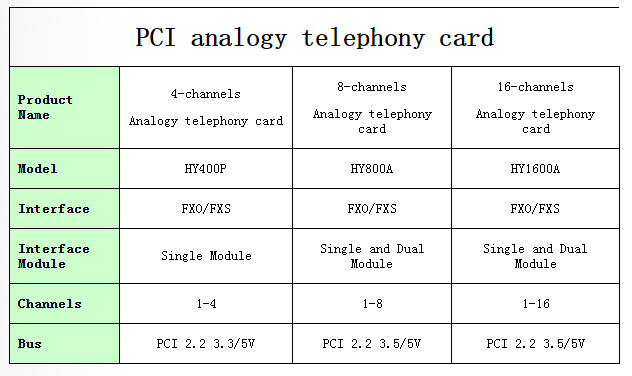

PCI analogy telephony card

Product Name

4-channels

Analogy telephony card

8-channels

Analogy telephony card

16-channels

Analogy telephony card

Model

HY400P

HY800A

HY1600A

Interface

FXO/FXS

FXO/FXS

FXO/FXS

Interface Module

Single Module

Single and Dual Module

Single and Dual Module

Channels

1-4

1-8

1-16

Bus

PCI 2.2 3.3/5V

PCI 2.2 3.5/5V

PCI 2.2 3.5/5V

The series of analogy telephony cards supports efficient and rich media processing capabilities, one machine can insert more than 6 cards, especially suitable for developing applications based on Asterisk.

HY40OP is 1 3.5 cm length, 10 cm height which is compliance with PCI 2. 2 standard interface cards. The card has 4 slots. Every slot can be inserted with single FXO / FXS module  which can be used to connect 1-4 analog telephone channels.


This series of FXO/FXS modules can be installed in any module slots to meet the requirements of different application configurations.
