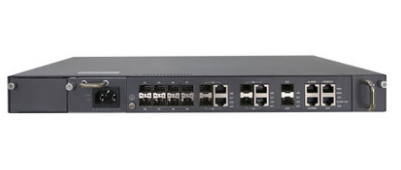

  OEM 4-16 pon EPON OLT

 Supply 4/8/16  PON Port

Support Dynamic Bandwidth Allocation (DBA),the bandwidth granularity 64Kbps;
Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure;
Support 4096 VLAN additions, transparent transmission and conversion, support VLAN stacking (QinQ);
Support 32K MAC¨s line speed learning and aging, support MAC address restriction;
Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol;
Support IGMP v1/v2 Snooping and Proxy, support CTC controllable multicast;
Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm;
Supports port speed, support packet filtering;
Support port mirroring and port trunking;
Provide logs, alarms and performance statistics;
Support WEB Management;
Support SNMP v1/v2c network.

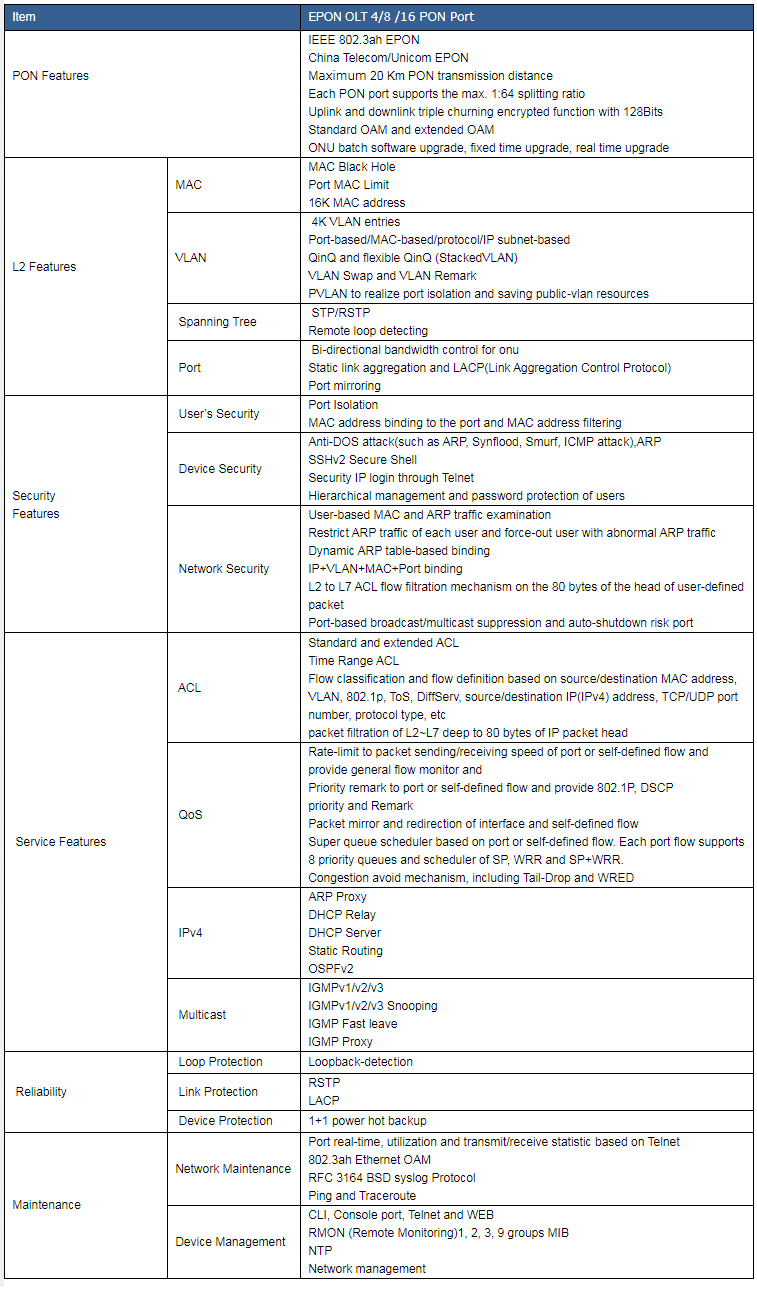

 Product Features:

Item

EPON OLT 4/8 /16 PON Port

PON Features





IEEE 802.3ah EPON

China Telecom/Unicom EPON

Maximum 20 Km PON transmission distance

Each PON port supports the max. 1:64 splitting ratio

Uplink and downlink triple churning encrypted function with 128Bits

Standard OAM and extended OAM

ONU batch software upgrade, fixed time upgrade, real time upgrade

L2 Features



MAC

MAC Black Hole

Port MAC Limit

16K MAC address

VLAN

 4K VLAN entries

Port-based/MAC-based/protocol/IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

 Spanning Tree  STP/RSTP

Remote loop detecting

 Port  Bi-directional bandwidth control for onu

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring

Security

Features


 User¨s Security Port Isolation

MAC address binding to the port and MAC address filtering

 Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack),ARP

SSHv2 Secure Shell

Security IP login through Telnet

Hierarchical management and password protection of users

 Network Security User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

 Service Features     ACL Standard and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4) address, TCP/UDP port number, protocol type, etc

packet filtration of L2~L7 deep to 80 bytes of IP packet head

 QoS Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and

Priority remark to port or self-defined flow and provide 802.1P, DSCP

priority and Remark

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port or self-defined flow. Each port flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

 IPv4 ARP Proxy

DHCP Relay

DHCP Server

Static Routing

OSPFv2

 Multicast IGMPv1/v2/v3

IGMPv1/v2/v3 Snooping

IGMP Fast leave

IGMP Proxy

 Reliability  Loop Protection

Loopback-detection

 Link Protection

RSTP

LACP

 Device Protection

1+1 power hot backup

Maintenance

Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet

802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

RMON (Remote Monitoring)1, 2, 3, 9 groups MIB

NTP

Network management
