High power industrial 2.4G/5.8G outdoor CPE with the next generation 802.11b/g/n Wi-Fi standard, combined 300Mbps high speed in 2.4G, equipped 2 10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE, it make more than 50 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. It is using air as a medium for network data transmission to remote point-to-point or point to multi-point connectivity. It supports 3KM transmission distance with two-way traffic flow up to 140M.SST-CPE230 has smart web management, it can be pairing automatically.
Product Name
HC503
Chipset
High Performance Enterprise Chipset AR9344
Main Frequency
580MHz MIPS® 24KEc™ CPU
Wireless Technology
5G: 450M 802.11a/n/ac 1T1R
Memory
64MByte DDR2
Flash
8MB
Network Interface

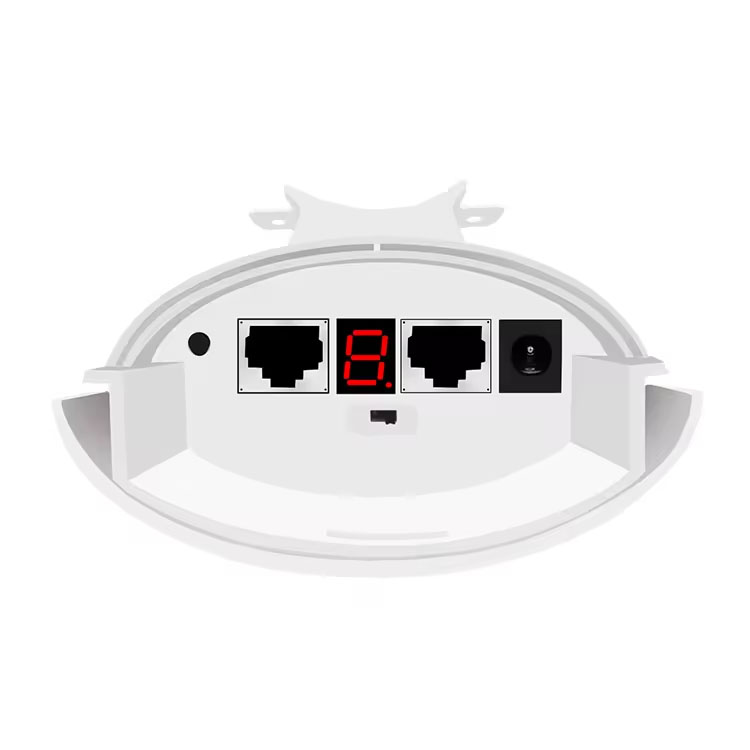

2*10/100Mbps Auto adaptive RJ45 port
Button
1*Tube button/Reset button; Master-slave dipswitch
Indicator

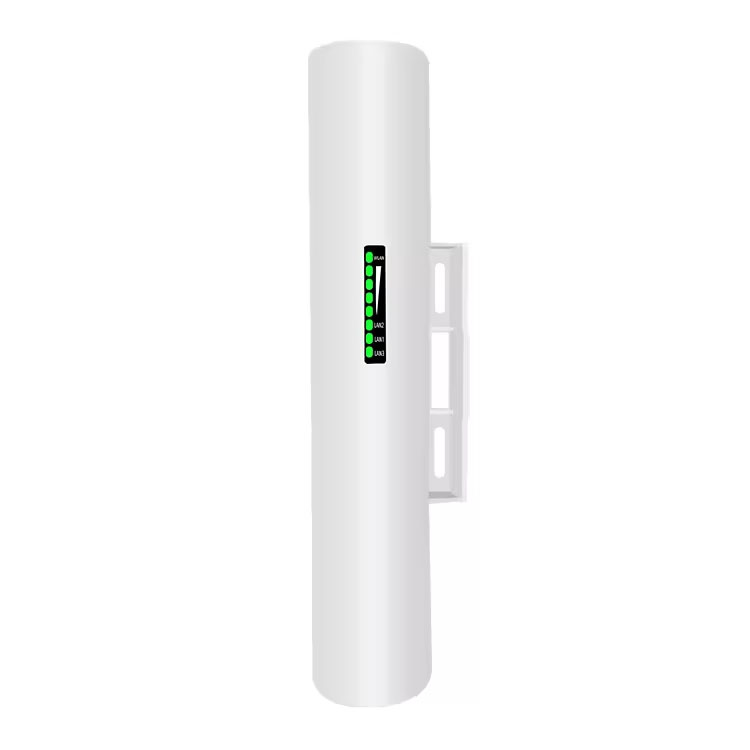

Power, LAN1, LAN2, Wifi Signal Strength
Power
24V 0.5A PoE power adapter; DC 12V 1A (optional); Power consumption < 10W
Working Environment
Temperature: -30°C to +55°C (working), -40°C to +70°C (storage); Humidity: 10% to 90% (working), 5% to 95% (storage)
Antenna
Built-in high gain 14dBi directional panel antenna (horizontal wave half-angle 60°, vertical wave half-angle 15°)
Frequency Range
ISM band: 4.900GHz ~ 5.850GHz
Wifi Channel
5G: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165
Modulation Method
OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; DSSS = DBPSK, DQPSK, CCK
Output Power
11a @54M: 20±2dB, @6M: 23±2dB; 11n 20MHz: @MCS9: 20±2dB, @MCS0: 23±2dB; 11n 40MHz: @MCS9: 20±2dB, @MCS0: 23±2dB; 11ac 40MHz: @MCS9: 20±2dB, @MCS0: 23±2dB; 11ac 80MHz: @MCS9: 20±2dB, @MCS0: 23±2dB
Reception Sensitivity
11a: <-72dBm@54Mbps, <-89dBm@6Mbps; 11n 20MHz: <-71dBm@MCS8, <-89dBm@MCS0; 11ac 40MHz: <-66dBm@MCS9, <-84dBm@MCS0; 11ac 80MHz: <-63dBm@MCS9, <-81dBm@MCS0
EVM
802.11n: ≤-28 dB; 802.11a: ≤-25 dB
Frequency Deviation
±20ppm
Working Mode
Master AP (bridge access point), slave AP (bridge client), switch by dip switch
Networking Method

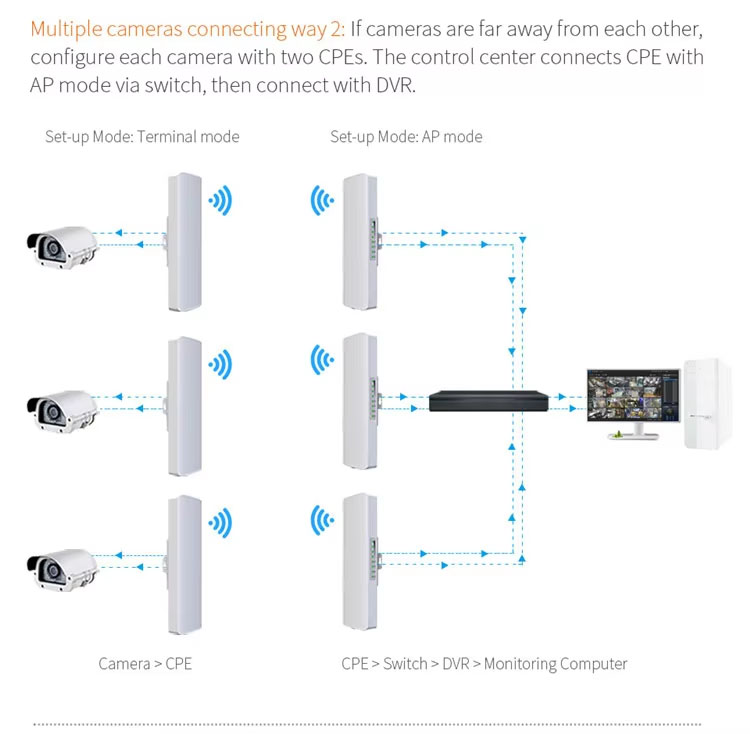

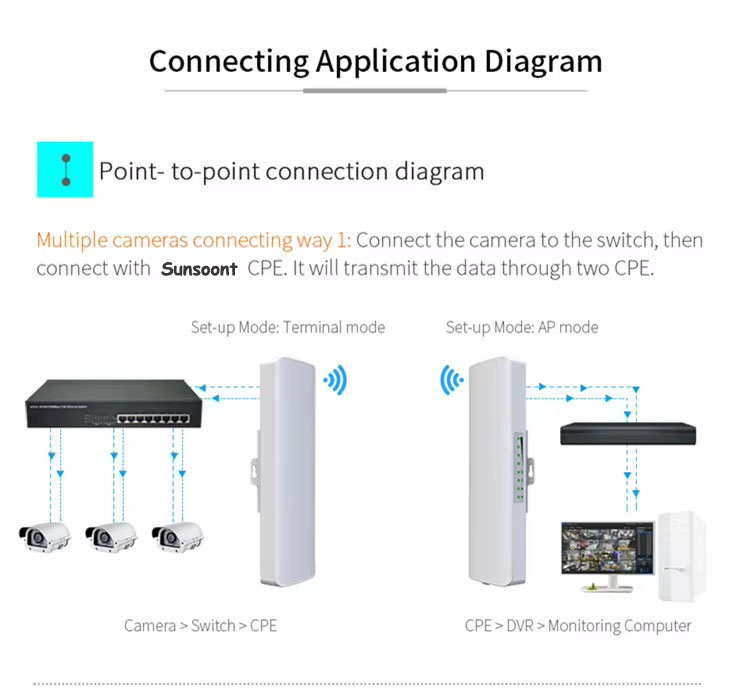

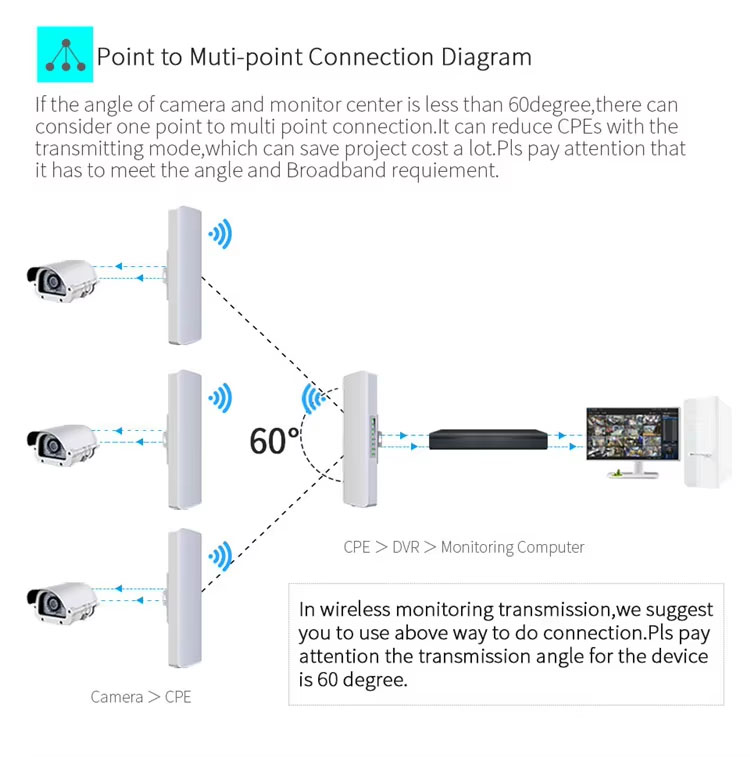

Point-to-point, point-to-multipoint (up to 8 points)
Bridge Configuration
Wireless mode: Bridge access point, bridge client switching; Bridge SSID, encryption method, bridge password, wireless protocol, wireless bandwidth, wireless channel, wireless power
Network
Static IP/Dynamic IP
System
Login password change, recovery factory setting, local upgrade
The high-performance enterprise-class outdoor bridge product that supports 802.11ac technology in the 5G band. The unique tube matching technology can easily complete the pairing of point-to-point and point-to-multipoint (within 8 points) devices without computer configuration. 5G 802.11ac wireless processing speed up to 300Mbps. The power supply mode is flexible, supporting 24V PoE network cable power supply and 12V 1A DC local power supply. The power supply distance of network cable can reach 50-70 meters (related to the network cable material).
The outdoor IP65 water-proof, rain-proof, dust-proof and sun-proof enclosure design is adopted to easily adapt to various harsh outdoor environments. Built-in 14dBi high-gain, wide-angle directional plate antenna, easy and fast installation. It has the characteristics of high performance, high gain, high receiving sensitivity and high bandwidth, which greatly enhances the wireless transmission performance and stability, Wireless transmission distance up to 0.5-3km.
