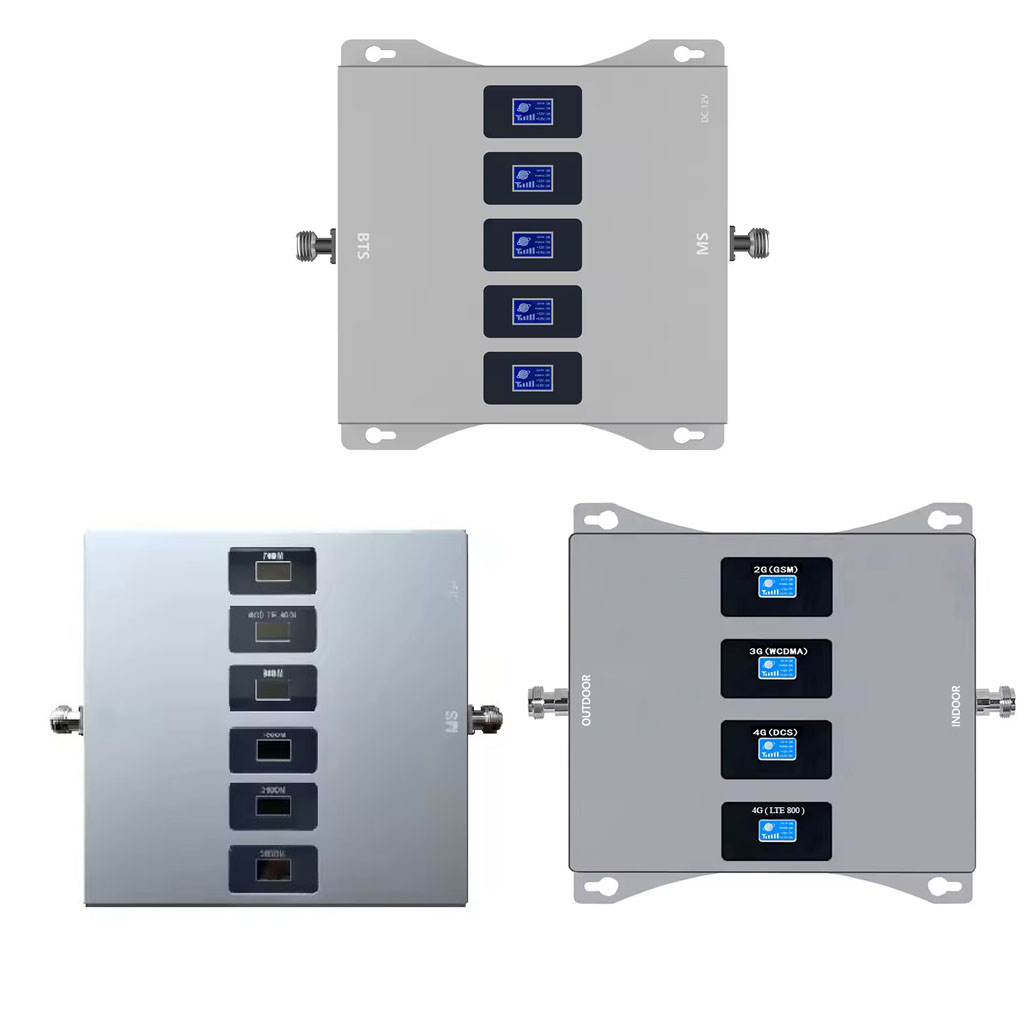

Product description Five Band Mobile Cellphone Network Signal Booster Repeater Function Signal extender Application Village, garage, home, basement, parking lots, tunnels, hotels, office, warehouse, building Working network GSM 2G 3G 4G LTE Working frequency 700/800/850/900/1800/1900/2100/2600/AWS1700/2100MHz B28/B20/B5/B8/B3/B2/B1/B7/B4 frequency band optional Option (1) 800/900/1800/2100/2600MHz (B20/B8/B3/B1/B7 band) (2) 850/900/1800/2100/2600MHz (B5/B8/B3/B1/B7 band) (3) 700/900/1800/2100/2600MHz (B28/B8/B3/B1/B7 band) (4) 700/850/1900/AWS1700/2100/2600MHz (B28/B5/B2/B4/B7 band) Gain 60~70dBi Max. Output Power 20±3dBm Impedance 50 ohm Noise Figure ≤4dB Time Delay ≤0.5us Power supply AC 110/220V DC12V Coverage 100~500sqm without barrier Installation type Wall installation Operating temperature -10℃~+60℃ Power plug EU/US/AU/UK standard optional Connector type N female
Product Introduction of mobile phone signal amplifier:
The product can be used in mountain areas, urban areas, towns, villages in the city,
underground warehouse, basement, underground parking lot without signal area.
The function is to draw (absorb)he stable signals outside to the room and then amplify and diffuse the signals to cover the whole effective area, so as to provide stable and high-quality signals to the equipment in need of signals.
Before buying please note!
1. Make sure the frequency band of your carrier is suitable for this item. Otherwise the device can't work for you. If you do not so clear the frequency of your phone, you would click this link www.frequencycheck.com for check the frequency band of your carriers.

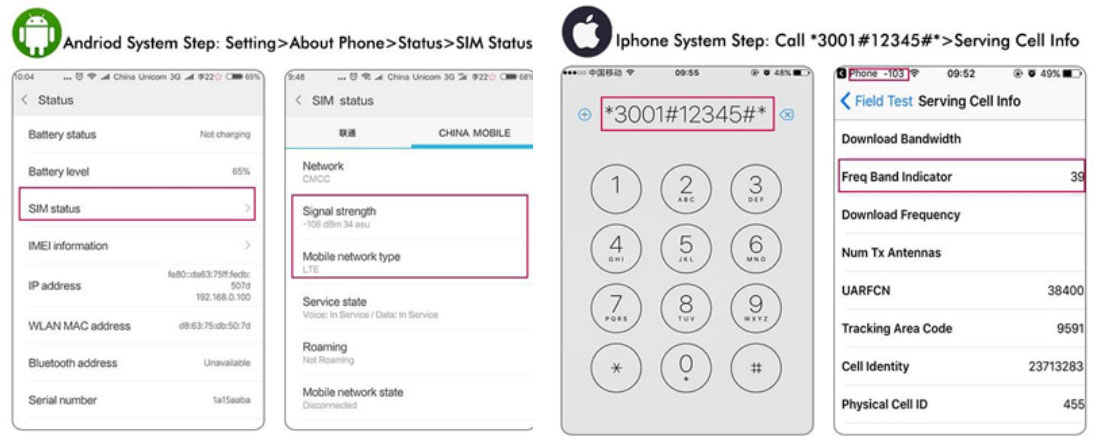

2. Make sure you can receive good signal that you want to amplify on your house outside. Which must be can getting 3~5 bar signal (-70dB~90dB signal strength) on your mobile phone. Please note that the signal booster can only boost the mobile phone network signal, but it does not help to generate any signal. For example, if your outside signal has 0 bar, it can't work or bring you any signal. Below is the method of check the mobile phone signal strength.
Attention:

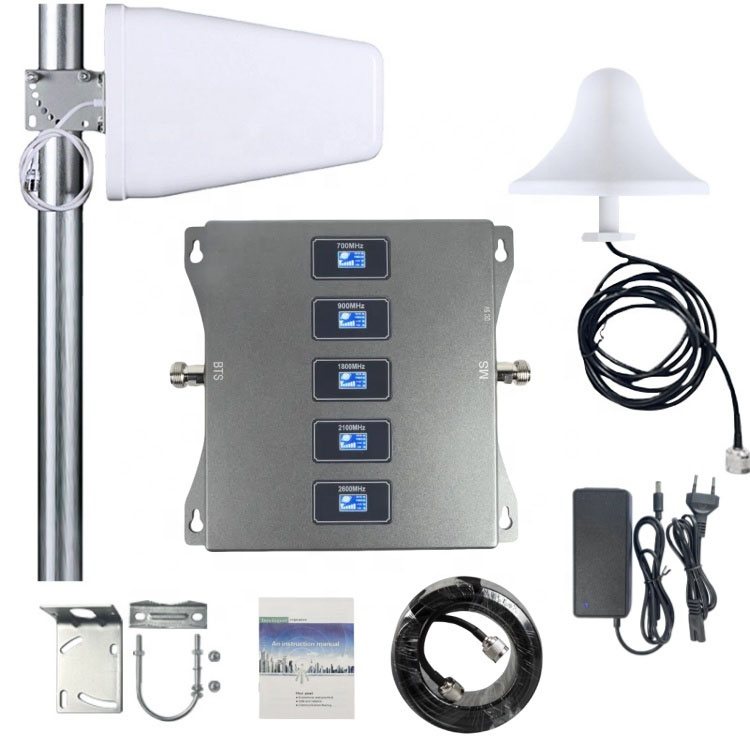

1. Please make sure the outdoor antenna is well isolated with the indoor antenna(s), they should not be on the same horizontal line. The outdoor antenna should be on the housetop, at least 10 meters far away from the indoor antenna(s), better with stairs or wall(s) in between. Put the indoor antenna(s) in the middle of room, far away from the window and door.
2. If still no signal reception after activating repeater, please check if outdoor antenna points to signal tower or elsewhere have strong signal and check if strength achieve -70dBm. Please adjust the direction of outdoor antenna until it catches good and steady signal. To ensure the result, the outdoor signal should be as strong as possible.

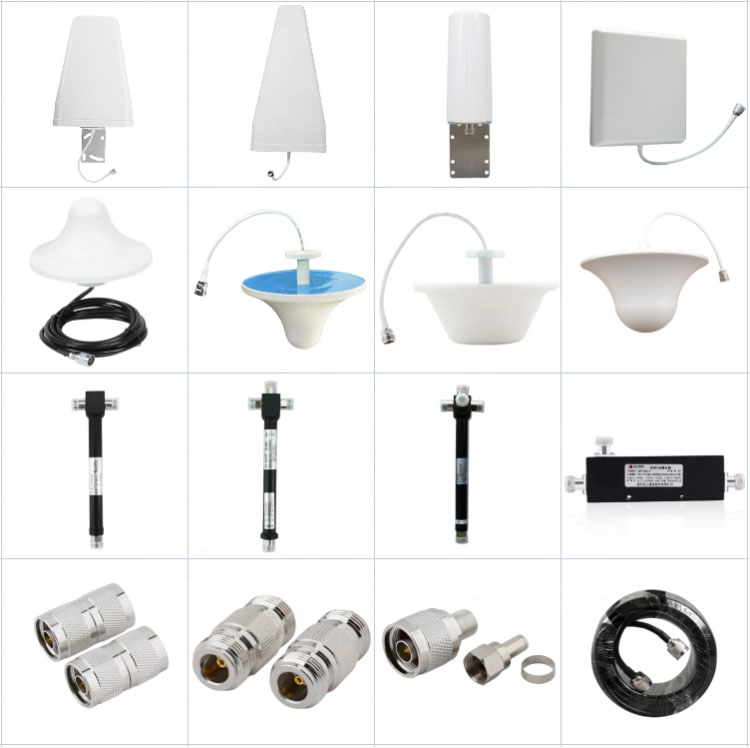

3. More indoor antennas and splitters/couplers are needed for bigger indoor coverage as one indoor antenna can cover around 100 square meters only.
