Firmware Specification

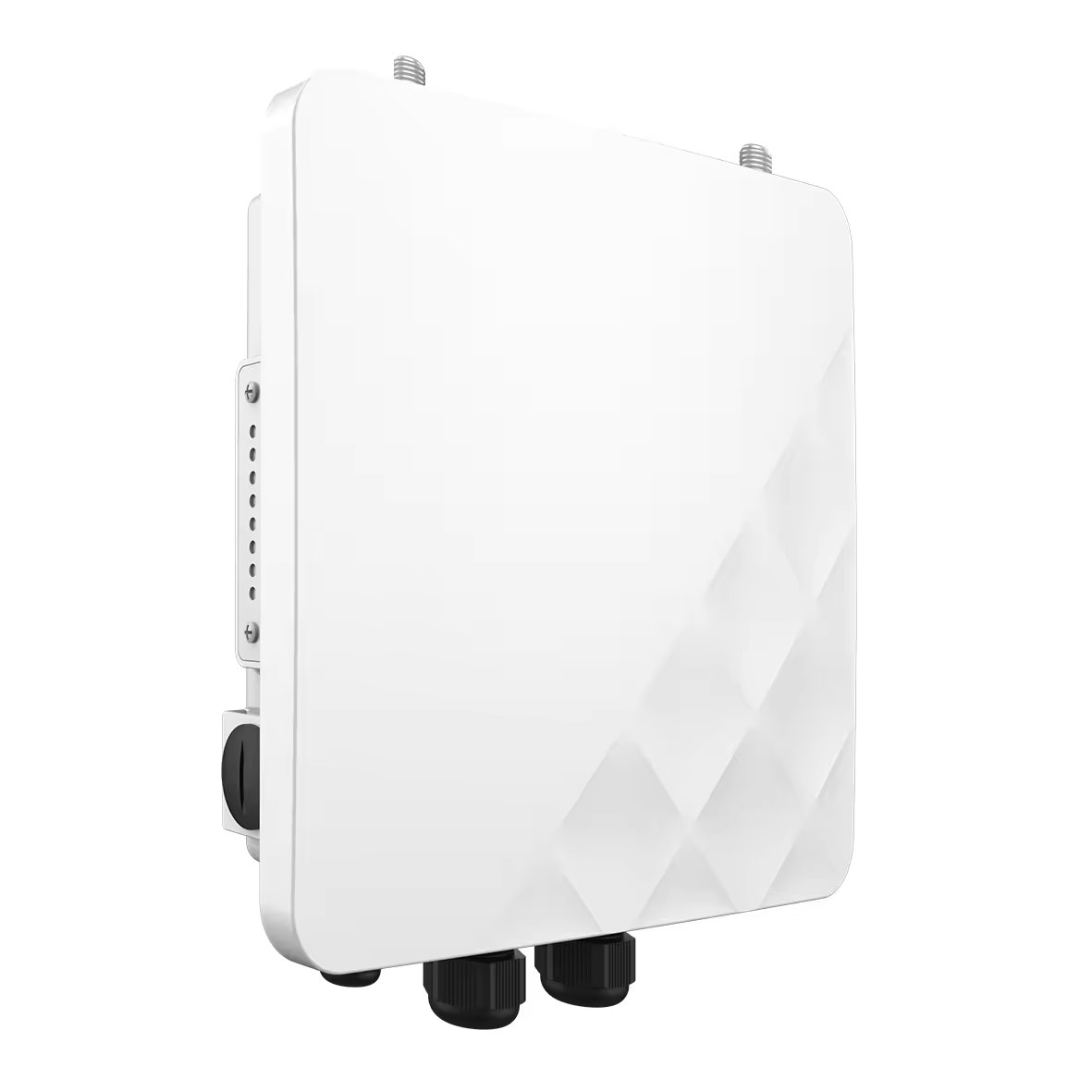

High-performance, high-speed industrial-grade long-distance wireless bridge. It has the characteristics of long transmission distance, strong penetration ability, and strong anti-interference ability.
Main Features:
Ø External 32dBi dual-polarized directional antenna, up to 35 km.
Ø The use of independent lightning protection board improves the product's ability to withstand harsh environments.
Ø Support non-standard frequency points: 4.9-6.1GHz.
Ø Support 5, 10MHz narrowband operating bandwidth
Ø Support ATPC, IPv6, TDMA.
Ø Support 24~48VPoE power supply and 12V DC power supply

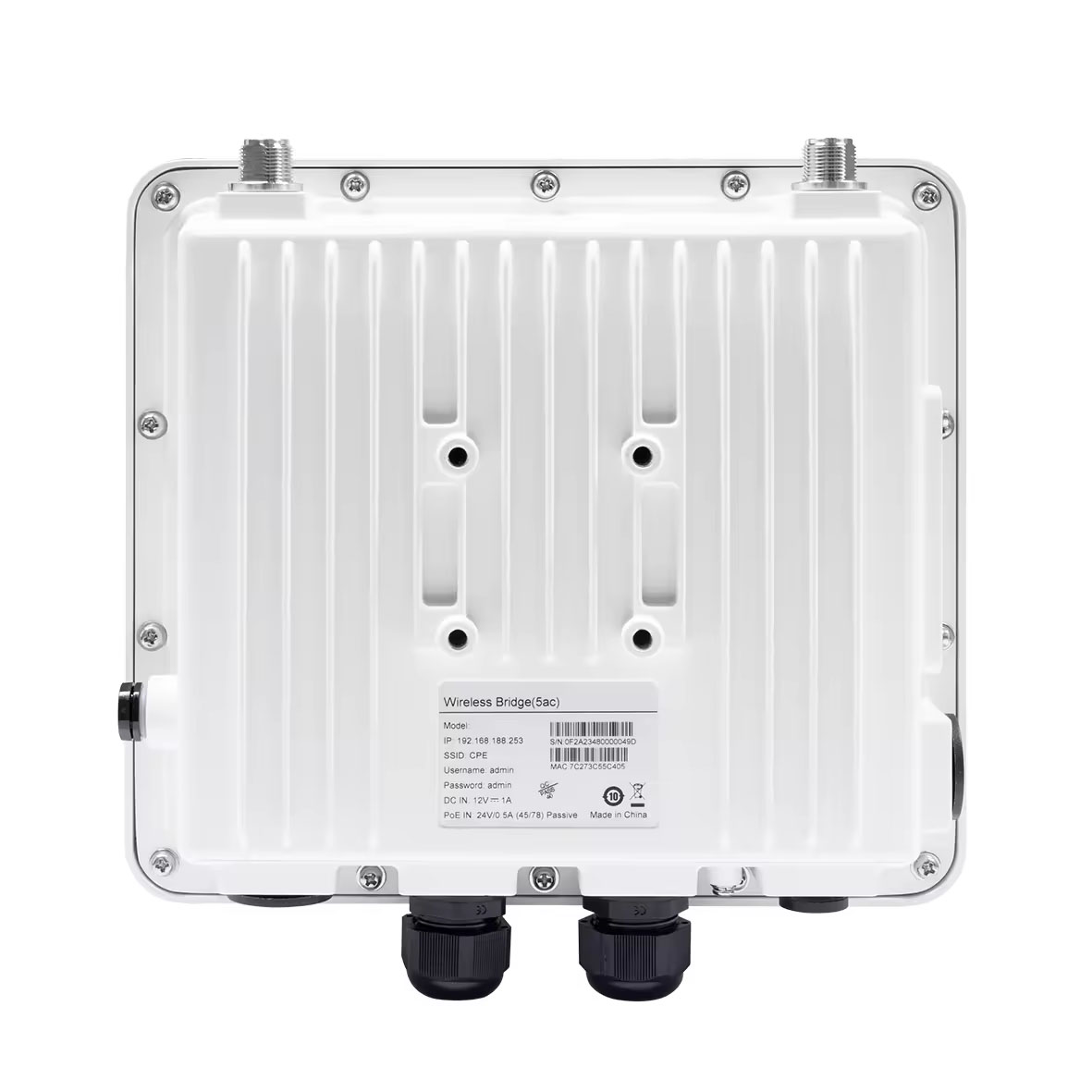

Model
WB5acH6-32
CPU
QCA9563+QCA9882+QCA8334
Flash
SPI NOR 16MB
DDR2
128MB
5G frequency
5.150GHz~5.850GHz
5G WIFI protocol
802.11 a / n /ac
Max rate
900Mbps
Antenna
External Dish antenna: 32dBi
5G EVM
802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB; 802.11AC_MCS9: ≤-32dB
ppm
±20ppm

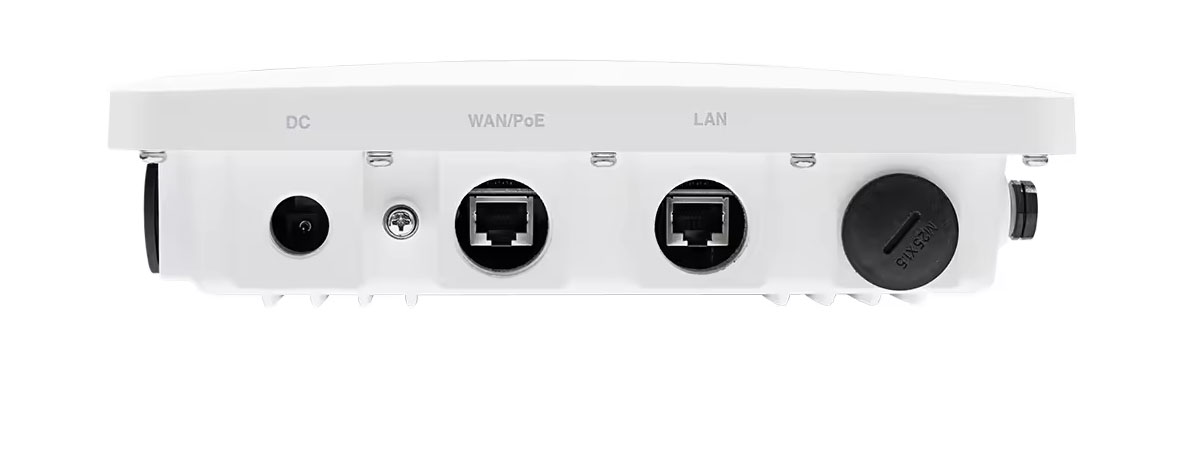

WAN
1*10/100/1000M WAN, support 24~48V Passive POE
LAN
1*10/100/1000M LAN
Power
PoE 24~48V, DC 12V
Power Consumption
<15W
Reset
Press 6~10 seconds for factory resetting.
Indicators
PWR, WAN, LAN, Signal*5
Dimension
243mm*218mm*67mm
Weight
1.8kg
Temperature
Working: -40°C to 70°C; Storage: -40°C to 70°C; Humidity: 5%~95% (Non-Condensing)
IP Grade
IP67
ESD
Air: ±15K, Touch: ±8K
Electrical Surge
Common Mode: 4K, Differential Mode: 2K
Working mode
Access Point (Automatic WDS), Access Point (TDMA3), Site (WDS/TDMA3), Site (ARPNAT)
Wireless
Intelligent dynamic polling, automatic channel selection, automatic modulation mode selection, automatic transmission power control (ATPC)
Wireless Safety
WPA/WPA2 personal encryption, WPA/WPA2 enterprise encryption, WACL, user isolation
Wireless QoS
TDMA implements 4 queue priority
Network mode
IPv4 IPv6
VLAN
Support VLAN and VLAN transparent transmission
WAN protocol
Static IP, DHCP client
Service
DHCP service, SNMP service, NTP client, route tracking, ping watchdog
Management
HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet
Built Tool
Site survey, connection testing, antenna calibration
