Highest capacity, license-free PTP device with the release of the PTP series product line. Making use of ground breaking 2x2 MiMo technology, the PTP 5-23 PRO delivers real aggregate throughput capability of up to 300 Mbps (170 Mbps full-duplex) combined with high packets per second performance. Specifically engineered for high performing PTP scenarios, minimizes interferences even across long distances and stabilizes latency within 2-4 ms In addition to achieving maximum performance

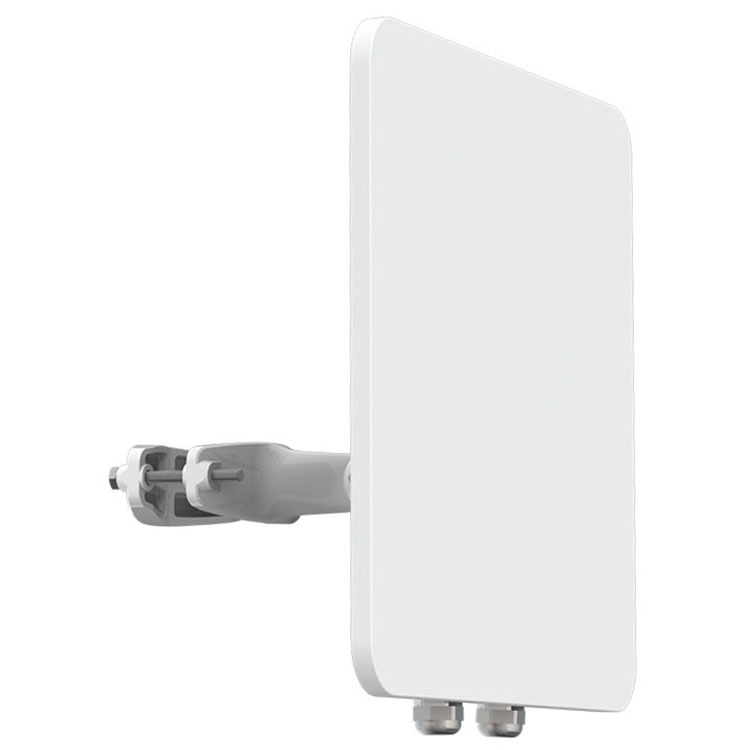

The robust mounting bracket enables rapid deployment of the links and ensures survivability during high wind-load. The integrated antenna possesses a 45° rotation option which increases installation flexibility; especially advantageous in noisy spectrum areas. A GORE© membrane vent allows fast pressure equalization of the IP-67 rated cast aluminum enclosure to prevent condensation and to ensure seal performance . A detachable handle eases transporting the devices up towers and over rough terrains.
Newly designed RGB LEDs indicate different device statuses and signal levels (in 1dBm steps) when aligning the antenna. Additionally, the new product is compatible with previous PTP 5-23 /5-N MiMo PRO models. This product enables carrier-class point-to-point capability, ideal for dedicated access or backhaul applications (including VOIP or other small packet applications). The PTP PRO product family couples flexible channel width capability (20 , 40 MHz) and industry-leading proprietary software mechanisms to set the utmost standard in spectral efficiency.
Radio specifications
Wireless technology
TDMA, 2x2 MIMO
Operating mode
Point-to-point / Point-to-Multi Point
Radio frequency band
4.900 - 6.100GHz (FCC: 4.940 - 4.990GHz, 5.150-5.250GHz, 5.725-5.850GHz)
Channel size
Configurable 20, 40 MHz
Max transmit power
28 dBm
Modulation schemes
BPSK, QPSK, 16QAM, 64QAM
Data rates
300 Mbps
Error correction
BCC, LDPC
Duplexing scheme
TDD
Automatic Channel Selection
DFS Compatibility
Automatic TPC
Supported
Antenna
Type
Integrated directional 23 dBi panel (PTP 5-23) / 2 N-type connectors (PTP 5-N)
Polarization (PTP 5-23)
Dual
Gain (PTP 5-23)
23 dBi
Elevation beamwidth
H pol: 6deg, V pol: 7deg, Elevation: 9deg
Data Interface
Physical interface
10/100/1000 BaseT with POE
Protocol
Ethernet IEEE 802.3
Connector type
RJ45
Surge protection
Built-in (IEC 61000-4-2 (ESD) and IEC 61000-4-5 (SURGE))
Link performance
Real data throughput
220 Mbps aggregate (170 Mbps full-duplex)
Max packets per second
65,000
Packet latency
2 ms (64 bytes packet)
Recommended link distance
More than 100 km (62.17 mi)
Security
Data encryption
Hardware based AES
Physical
Dimensions (PTP 5-23)
Length 379 mm (14.9‘’), width 387 mm (15.2 ‘’), height 51 mm (2 ‘’)
PTP 5-N
Length 399 mm (15.7‘’), width 174 mm (6.8‘’), height 47 mm (1.8‘’)
Weight
3.9 kg (8.5 lb) (5-23) / 2.9KG (5-N)
tr>
Power supply
48 VDC, active PoE (802.3af)
Power source
100 – 240 VAC via included adapter
Power consumption
8.6W
Environmental
Operating temperature
-40°C (-40 F) ~ +65°C (+149 F)
Humidity
0 ~ 90 % (non-condensing)
Management
Installation assistant
OLED screen
System configuration
User-friendly web GUI, HTTP(S) WNMS
Management system
SNMP, GUI/HTTP(S), Shell/SSH and WNMS
Regulatory
Certification
FCC/IC/CE/NCC
Ingress protection
IP-67
Safety
RoHS compliant
