Model
WB5acDish-Pro
CPU
QCA9563+QCA9882+QCA8334
Flash
SPI NOR 16MB
DDR2
128MB
5G Band
5.150GHz～5.850GHz
5G WIFI Protocol
802.11 a / n /ac
Maximum rate
900Mbps
Antenna

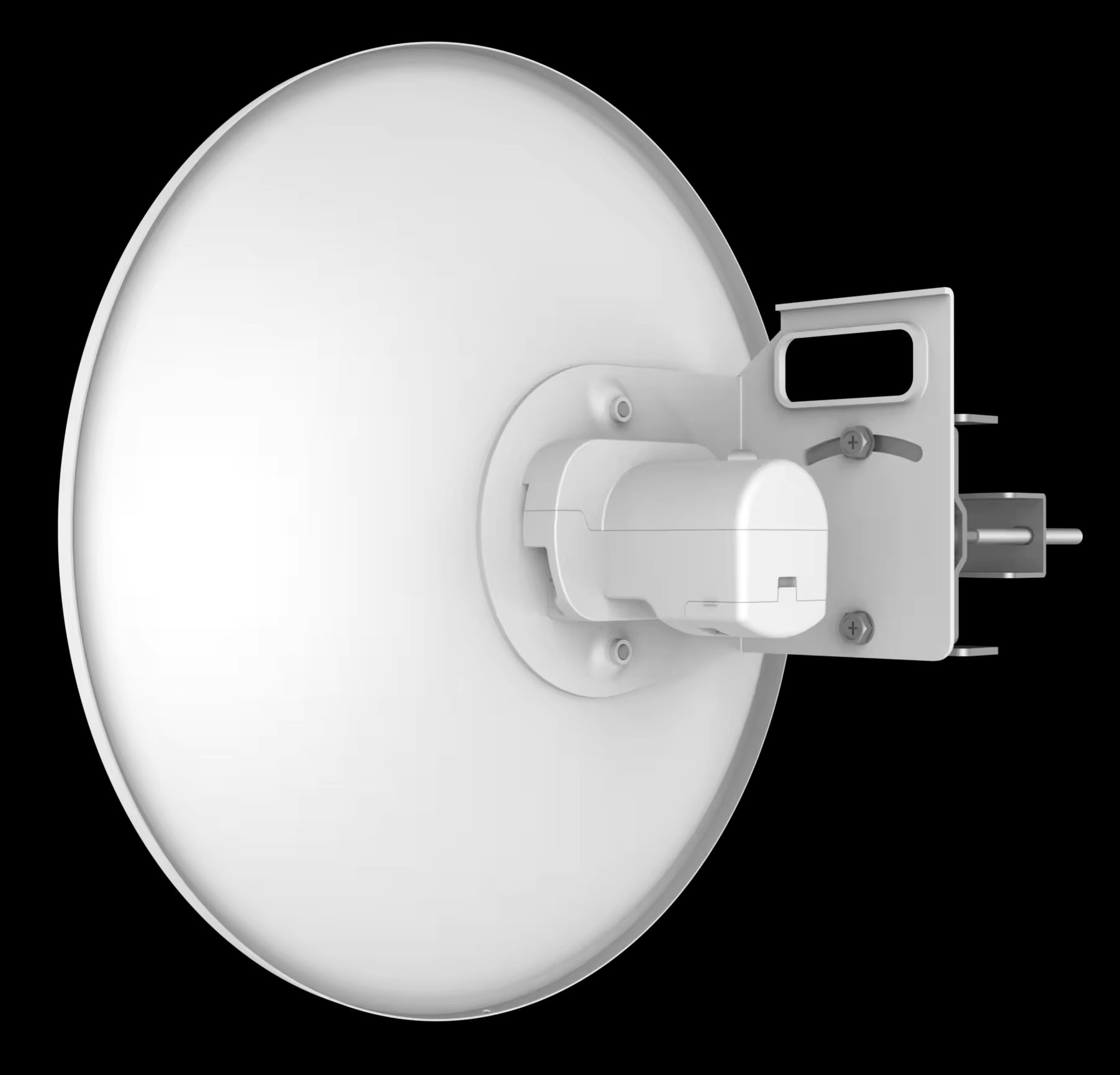

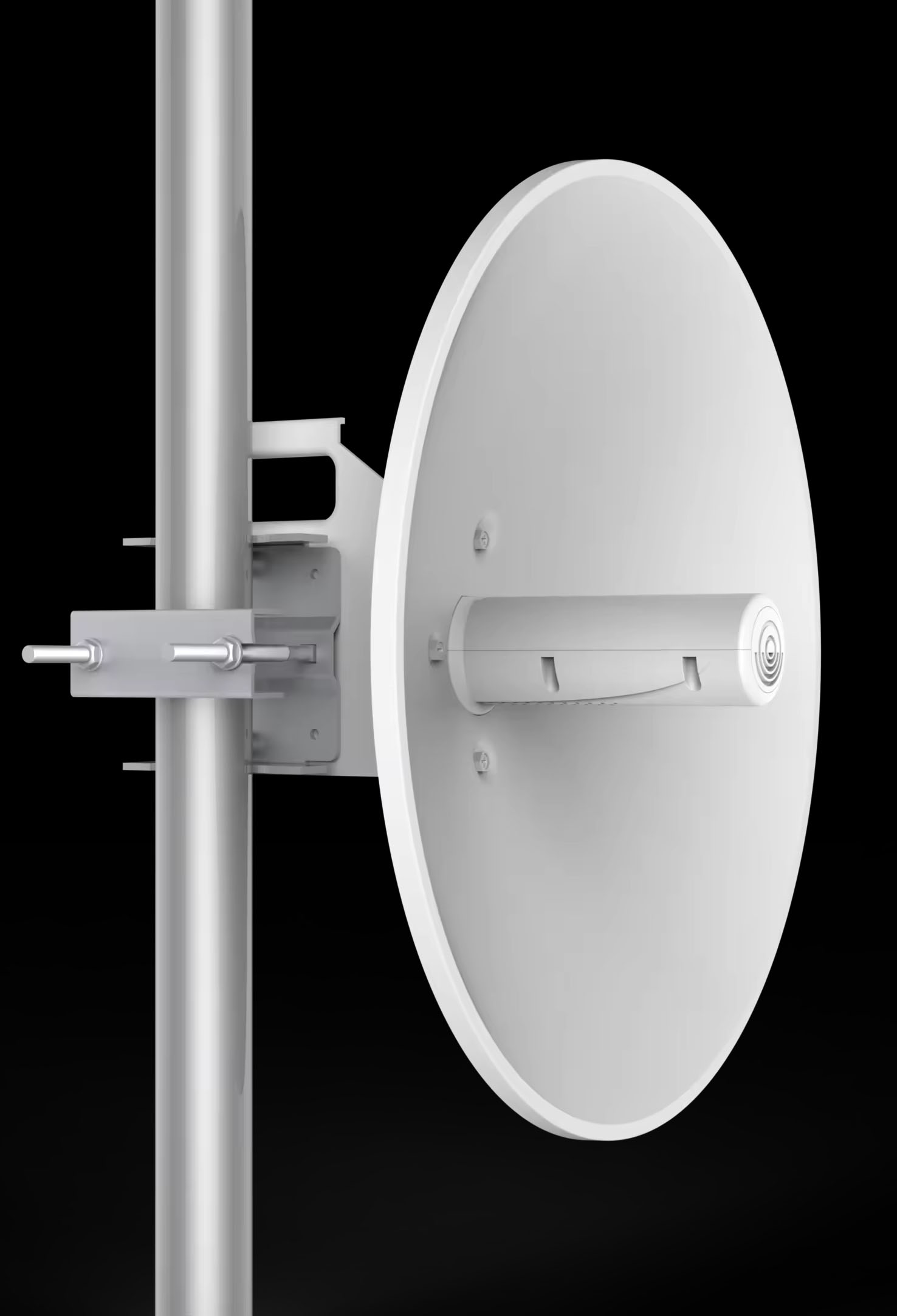

Integrated 27dBi dual polarization dish antenna
5G EVM
802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB
frequency deviation（ppm）
±20ppm
Port (WAN)
1*10/100/1000M WAN, support 48V POE
Port（LAN）
1*10/100/1000M LAN
Supply
PoE 48V，DC 12~24V
Consumption
＜15W
Reset Button
Long press for 6-10 seconds to restore factory default configuration
LED
SYS, WAN, LAN, 5G WIFI, signal*4
Size
Φ466mm*260mm
Weight
2.9KG
Environment
Operating temperature: -40°C to 70°C
IP grade
IP65
ESD
Air +/-8K，Contact +/-6K
Surge protection
Common-Mode: 4K，Differential-Mode: 1K
High-performance, high-speed outdoor long-distance wireless bridge with characteristics such as long transmission distance, strong penetration ability, and strong anti-interference ability.
Main Features
▲Support non-standard frequency points, spread spectrum to 4.9-6.1GHz. ▲Integrated 27dBi dual polarization dish antenna, up to 20 kilometers. ▲Supports both 48V PoE power supply and 12V DC power supply ▲TDMA Intelligent Dynamic Polling Protocol ▲Support 5, 10MHz narrowband operating bandwidth ▲Supporting IPv6, ATPC, VLAN
Storage temperature: -40°C to 70°C；humidity：5％～95％（No condensation）
