210 Sip Phone

Voip phone

Sip phone
Voip phone.
Model,function,picture,...

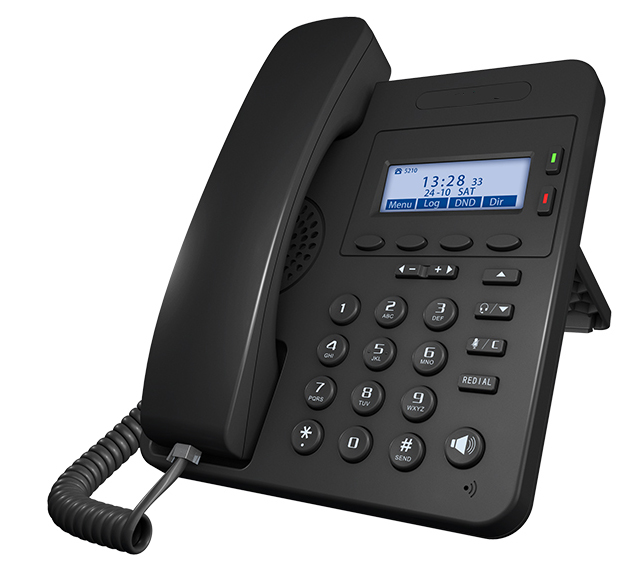

210 Sip Phone

��

IFeatures
Support 2 lines.
Support 38.5��demountable bracket.
Support 5 programmable keys(2 Line keys,
Up&Down keys, Redial key).
Support Multi-language,e.g:Chinese,English,
French,Russian,Italian and etc.
2*10/100M Ethernet ports, POE is optional.
Auto-provision, HTTP/HTTPS/TFTP/FTP.

��

Phone Features

2 SIP accounts, MWI(Line1)
Call hold, Call waiting, Call forward, Call return;
Call transfer (blind/busy/ask)
Caller ID display, Redial, Mute, DND
Auto-answer, 3-way conferencing
Speed dial, SMS, Voicemail
Tone scheme, Volume control
Direct IP call without SIP proxy
Ring tone selection/import/delete
Black list, Hand-free indicator.
Call history: dialed/received/missed;
Soft keys programmable, Supports PC control
Multi-Language: Chinese,English,French,Russian,
Italian,Polish,Portuguesa,Portuguesa-Brasil,
Spanish,Turkish

Advanced Features
5 programmable keys
XML Phone Book search and input & output
Enterprise phone book(800 entries)
Personal Phonebook(300 entries)
LDAP phone book

IP PBX System Integration
Busy lamp field (BLF), BLF list
Bridged line appearance (BLA)
DND & Forward synchronization
Intercom, Paging, Music on hold
Call pickup, Dial Plan, Call recording
Anonymous call, Anonymous call rejection
Network conference, Distinctive ring tone

Codes and Voice Features
Wideband Codec: G.722
Narrowband codec: G.711��/A, G.726,
G.729AB,iLBC
VAD, CNG, AEC, AGC, Full-duplex,

Security
VLAN QoS (802.1pq), SRTP
Transport Layer Security (TLS)
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Encryption for configuration file
Phone lock for personal privacy protection
Admin/User 2-level configuration mode ,
LLDP, CDP
L2TP VPN tunneling protocol - added

��

Network Features
SIP v1 (RFC2543), v2 (RFC3261)
SIP connection: Proxy mode & Peering
Points mode;
SRTP voice encryption(RFC3711)
Redundant server support
NAT Traversal: STUN mode
DTMF: In-Band, RFC2833, SIP Info, Auto
HTTP Web Management
IP Assignment: Static/DHCP/PPPoE
Bridge/Router mode for PC port
TFTP/DHCP/PPPoE client
Telnet/HTTP/HTTPS server, DNS client,
NAT/DHCP server

Management
Auto-provision via FTP/TFTP/HTTP/HTTPS
Configuration: browser/phone/auto-provision
Trace package and system log export

Optional Feature
TR069��IPv6��HTTPS web management��
802.1x��OPEN VPN

Physical Features
128*64 graphic LCD with back light
25 keys, including 5 programmable keys,
2 LEDs: 2* account lights, including MWI(L1)
1* RJ9 handset port
2xRJ45 10/100M Ethernet ports
Power adapter: AC 100~240V input and
DC 5V/1A output
POE ,IEEE 802.3af,class 0(Option)
Power consumption: 1.5W
Net weight: 0.62kg
Dimension: 180x157x33mm
Operating humidity: 10~95%
Storage temperature: up to 60��C

Package Features
Qty/CTN: 10 PCS
N.W/CTN:
G.W/CTN:
Carton Meas:
